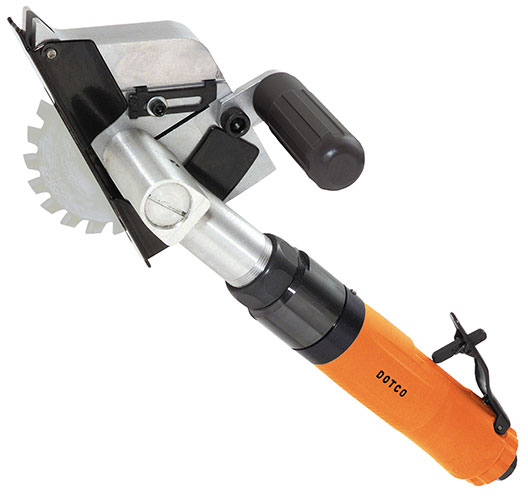

12-27 Series
Dotco Saws
0.9 HP (0.67 kW)
Models
Drag your finger across the table to scroll
| Models | Saw Blade Capacity |
Maximum Depth of Cut |
Exhaust | Free Speed (rpm) | Housing Material |
|---|---|---|---|---|---|
| 12S2790-02 | 4" | 1" | Rear | 430 | Composite |
| 12S2792-02 | 3.375" | 1" | Rear | 940 | Composite |
| 12S2793-02 | 4" | 1" | Rear | 3,200 | Composite |
| 12S2794-01 | 2.5" | 9/16" | Rear | 4,700 | Composite |
| 12S2794-02 | 3.375" | 1" | Rear | 4,700 | Composite |
| 12S2774-02 | 3.375" | 1" | Vacuum Ready | 7,000 | Composite |
| 12S2775-01 | 4" | 1" | Vacuum Ready | 8,500 | Composite |
| 12S2775-03 | 4" | 1" | Rear | 8,500 | Composite |
| 12S2748-01 | 4" | 1" | Front | 9,000 | Composite |
| 12S2749-01 | 3.375" | 1" | Front | 11,000 | Composite |
All tools performance rated @ 90psi / 620 kPa air pressure.
Minimum Hose I.D.: 5/16" / 7.9mm
Standard Equipment: Applicable wrenches, oilless blades, 3/4in Arbor adapter
Features
- Compact and easy to use
- Excellent control and high productivity with minimum fatigue
- Easy to change blades

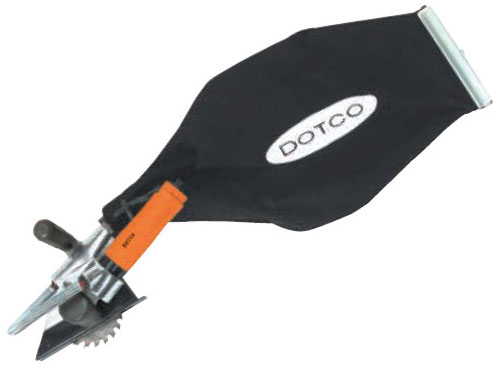

12-27 Series Vacuum Kit
To convert an existing Dotco front exhaust series 12-27 saw to Vacuum operation, order any of the conversion kits listed in the table below. Refer to the Vacuum Ready models listed on the Models Table as a guideline to selection. NOTE: When converting to vacuum, free speed of the tool will be reduced 20%.
Drag your finger across the table to scroll
| Part Number | Converts front exhaust to this configuration |
|---|---|
| 2704 | Option 1 - Porta Bag |
| 2705 | Option 2 - Floor Bag |
| 2729 | Option 3 - Vacuum System Adapter |
Dimensions
Drag your finger across the table to scroll
| Models | Weight lbs (kg) |
Length in (mm) |
Air Inlet Size |
|---|---|---|---|
| 12S2790-02 | 6.2 (2.81) | 16.2 (411) | ¼" |
| 12S2792-02 | 6.2 (2.81) | 16.2 (411) | ¼" |
| 12S2793-02 | 5.2 (2.36) | 14.5 (368) | ¼" |
| 12S2794-01 | 4.6 (2.09) | 13.2 (335) | ¼" |
| 12S2794-02 | 5.2 (2.36) | 14.5 (368) | ¼" |
| 12S2774-02 | 6.5 (2.95) | 14.1 (358) | ¼" |
| 12S2775-01 | 7.2 (3.27) | 14.1 (358) | ¼" |
| 12S2775-03 | 6.5 (2.95) | 14.1 (358) | ¼" |
| 12S2748-01 | 4.8 (2.18) | 11.4 (290) | ¼" |
| 12S2749-01 | 4.8 (2.18) | 11.4 (290) | ¼" |
All tools performance rated @ 90psi / 620 kPa air pressure.
Minimum Hose I.D.: 5/16" / 7.9mm
Standard Equipment: Applicable wrenches, oilless blades, 3/4in Arbor adapter
