216 Series

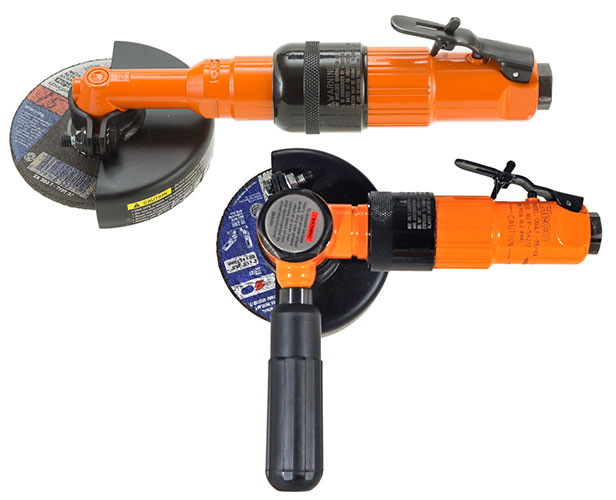

Dotco Right Angle Grinders for Type 27 Depressed Center Wheels
0.6 HP (0.4 kW) - Heavy Duty and Extended Heads
Models
Heavy Duty Head
Drag your finger across the table to scroll
| Models | Spindle Size | Exhaust | Free Speed (rpm) | Abrasive Capacity | Housing Material |
|---|---|---|---|---|---|
| 216GLF-115A-D3T4 | 3/8" - 24 e | Front | 11,500 | 4" Type 27 | Aluminum |
| 216GLF-115A-D3T45 | 3/8" - 24 e | Front | 11,500 | 4.5" Type 27 | Aluminum |
All tools performance rated @ 90psi / 620 kPa air pressure.
Minimum Hose I.D.: 5/16" / 7.9mm
Standard Equipment: Wheel guard, wheel adapter, spindle wrench, Operating instructions & service manual
Extended Head
Drag your finger across the table to scroll
| Models | Spindle Size | Exhaust | Free Speed (rpm) | Abrasive Capacity | Housing Material |
|---|---|---|---|---|---|
| 216GLFB-135A-D3T4 | 3/8" - 24 e | Front | 13,500 | 4" Type 27 | Aluminum |
| 216GLSB-135A-D3T4 | 3/8" - 24 e | Side | 13,500 | 4" Type 27 | Aluminum |
All tools performance rated @ 90psi / 620 kPa air pressure.
Minimum Hose I.D.: 5/16" / 7.9mm
Standard Equipment: Wheel guard, wheel adapter, spindle wrench, Operating instructions & service manual
Features
Heavy Duty Head
- Rugged and durable aluminum housing
- Robust and long lasting angle head for the most demanding applications
- Powerful motor stays durable in the harshest environments
Extended Head
- Rugged and durable aluminum housing
- Extended head for better reach and accessibility
- Lock-off lever for safe operation
Dimensions
Heavy Duty Head
Drag your finger across the table to scroll
| Models | Weight lbs (kg) |
Length in (mm) |
Head Height | Air Inlet Size |
|---|---|---|---|---|
| 216GLF-115A-D3T4 | 2.7 (1.22) | 7.1 (180) | 3.2" | ¼" |
| 216GLF-115A-D3T45 | 2.7 (1.22) | 7.1 (180) | 3.2" | ¼" |
All tools performance rated @ 90psi / 620 kPa air pressure.
Minimum Hose I.D.: 5/16" / 7.9mm
Standard Equipment: Wheel guard, wheel adapter, spindle wrench, Operating instructions & service manual
Extended Head
Drag your finger across the table to scroll
| Models | Weight lbs (kg) |
Length in (mm) |
Head Height | Air Inlet Size |
|---|---|---|---|---|
| 216GLFB-135A-D3T4 | 2.7 (1.22) | 9.1 (231) | 2.2" | ¼" |
| 216GLSB-135A-D3T4 | 2.4 (1.09) | 9.1 (231) | 2.2" | ¼" |
All tools performance rated @ 90psi / 620 kPa air pressure.
Minimum Hose I.D.: 5/16" / 7.9mm
Standard Equipment: Wheel guard, wheel adapter, spindle wrench, Operating instructions & service manual
