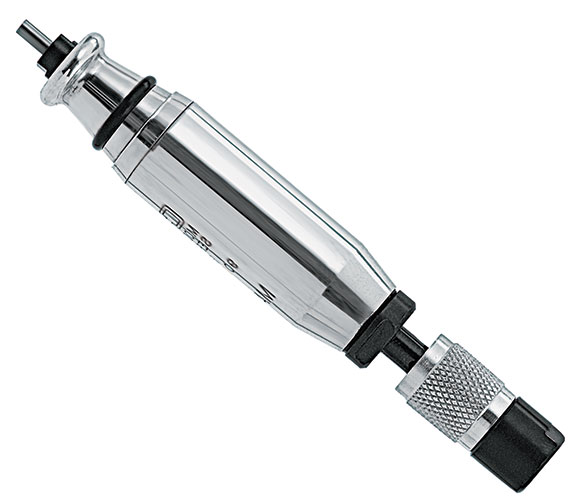

220G Series
Dotco Precision Grinders
0.1 HP (0.074 kW) - Push/Pull Start - Front Exhaust
Models
Drag your finger across the table to scroll
| Models (By Collet Guard) |
Collet Size | Throttle Type | Free Speed (rpm) | Abrasive Capacity | Housing Material | |
|---|---|---|---|---|---|---|
| Without | With | |||||
| 220GL-600-C2 | — | 1/8" | Lever | 60,000 | ¼" Carbide Burr | Aluminum |
| — | 220G-600-C2-K# | — | None | 60,000 | ¼" Carbide Burr | Aluminum |
| 220G-600-C2* | — | 1/8" | None | 60,000 | ¼" Carbide Burr | Aluminum |
Use dry air at 90psi maximum: Do not lubricate turbine grinders. Lubrication will be detrimental to the operation and life of turbine tools.
Do not attach a quick-disconnect fitting directly to the tool.
Standard Equipment: Applicable collet, collet wrenches, 8 ft./2.4m air supply hose, built-in air filter, speed regulator
* Tool will start with applied air, intended for fixtured applications
# Kit includes grinder, hose, collet, collet wrench, cylindrical plain burr 413680, cylindrical radius end burr 413681, cone & taper burr 413682, and tree point burr 413683, carrying case.
Features
- Industrial bearing provides long life expectancy
- Designed for precision deburring and metal removal
- Compact and light weight housing
- Available in a kit with a complete set of accessories
Dimensions
Drag your finger across the table to scroll
| Models (By Collet Guard) |
Weight lbs (kg) |
Length in (mm) |
Air Inlet Size | |
|---|---|---|---|---|
| Without | With | |||
| 220GL-600-C2 | — | 0.4 (0.18) | 4.6 (117) | 1/8" |
| — | 220G-600-C2-K# | 0.5 (0.23) | 4.6 (117) | 1/8" |
| 220G-600-C2* | — | 0.3 (0.14) | 4.6 (117) | 1/8" |
Use dry air at 90psi maximum: Do not lubricate turbine grinders. Lubrication will be detrimental to the operation and life of turbine tools.
Do not attach a quick-disconnect fitting directly to the tool.
Standard Equipment: Applicable collet, collet wrenches, 8 ft./2.4m air supply hose, built-in air filter, speed regulator
* Tool will start with applied air, intended for fixtured applications
# Kit includes grinder, hose, collet, collet wrench, cylindrical plain burr 413680, cylindrical radius end burr 413681, cone & taper burr 413682, and tree point burr 413683, carrying case.
