15DP Series

Dotco Pistol Grip Drills

1.0 HP (0.75 kW)

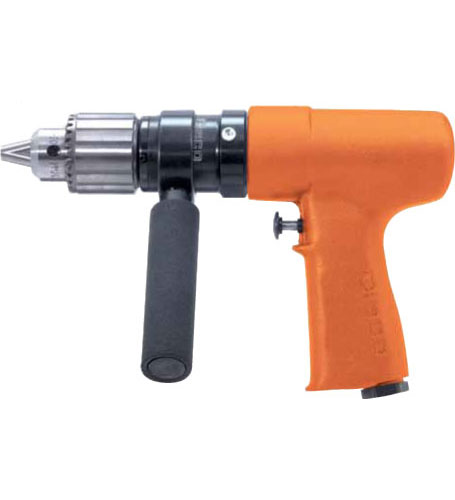

15DP Series Pistol Grip Drills

  Models

Drag your finger across the table to scroll

Models Termination Free Speed (rpm) Housing Material
15DP-1.6B-53 ½" Chuck 160 Aluminum
15DP-4B-53 ½" Chuck 400 Aluminum
15DP-8B-53 ½" Chuck 800 Aluminum
15DP-14B-49 3/8" Chuck 1,400 Aluminum

All tools performance rated @ 90psi / 620 kPa air pressure.
Standard Equipment: Operating instructions and service manual Dead handles on all models except 15DP-14B 3-Jaw Chuck and Key
General: Air Inlet: 3/8" NPTF, Minimum Hose Size: 3/8", Spindle Thread: ½"-20, Spindle Offset: Pistol Grip: 31/32"
Drill Diameter Capacity Matches Chuck Size
Minimum hose ID: 5/16" / 7.9 mm

  Features

  • Excellent for slow speed applications
  • Powerful motor

  Dimensions

Drag your finger across the table to scroll

Models Weight
lbs (kg)
Length
in (mm)
Air Inlet Size
15DP-1.6B-53 6.0 (2.72) 9.8 (249) 3/8"
15DP-4B-53 5.5 (2.49) 8.5 (216) 3/8"
15DP-8B-53 5.5 (2.49) 8.5 (216) 3/8"
15DP-14B-49 4.5 (2.04) 8.3 (211) 3/8"

All tools performance rated @ 90psi / 620 kPa air pressure.
Standard Equipment: Operating instructions and service manual Dead handles on all models except 15DP-14B 3-Jaw Chuck and Key
General: Air Inlet: 3/8" NPTF, Minimum Hose Size: 3/8", Spindle Thread: ½"-20, Spindle Offset: Pistol Grip: 31/32"
Drill Diameter Capacity Matches Chuck Size
Minimum hose ID: 5/16" / 7.9 mm
