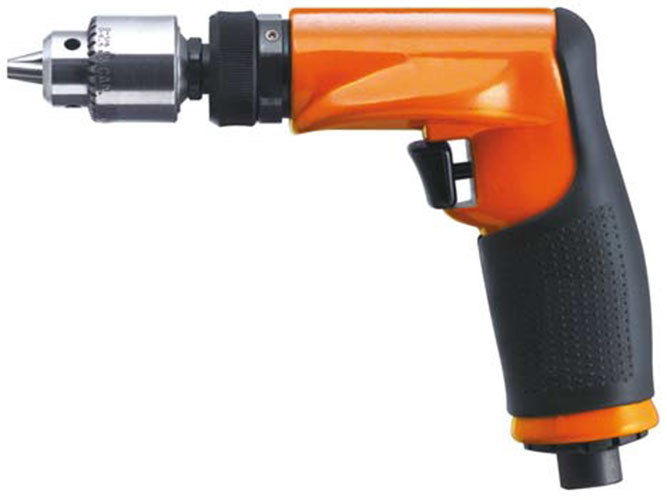

14CF Series
Dotco Pistol Grip Drills
0.4 HP (0.30 kW) - Non-reversible
Models
Drag your finger across the table to scroll
| Models (By Termination) |
Free Speed (rpm) | ||
|---|---|---|---|
| ¼" Chuck | 3/8" Chuck | 3/8" - 24 e | |
| 14CFS97-38 | 14CFS97-51 | 14CFS97-40 | 600 |
| 14CFS96-38 | 14CFS96-51 | 14CFS96-40 | 700 |
| 14CFS95-38 | 14CFS95-51 | 14CFS95-40 | 1,000 |
| 14CFS94-38 | 14CFS94-51 | 14CFS94-40 | 2,400 |
| 14CFS93-38 | 14CFS93-51 | 14CFS93-40 | 3,200 |
| 14CFS92-38 | 14CFS92-51 | 14CFS92-40 | 3,800 |
| 14CFS91-38 | 14CFS91-51 | 14CFS91-40 | 5,200 |
| 14CFS90-38 | 14CFS90-51 | 14CFS90-40 | 29,000 |
All tools performance rated @ 90psi / 620 kPa air pressure.
Minimum Hose I.D.: 5/16" / 7.9mm
Drill Diameter Capacity Matches Chuck Size
Features
- Equipped with Jacobs® geared chuck and chuck key
- Non-reversible
- Composite housing with ergonomic finger and thumb guides to aid control
- Excellent for aerospace, metal fabrication, and wood working application
Dimensions
Drag your finger across the table to scroll
| Models (By Termination) |
Weight lbs (kg) |
Length in (mm) |
Air Inlet Size | ||
|---|---|---|---|---|---|
| ¼" Chuck | 3/8" Chuck | 3/8" - 24 e | |||
| 14CFS97-38 | 14CFS97-51 | 14CFS97-40 | 1.8 (0.82) | 6.9 (175) | ¼" |
| 14CFS96-38 | 14CFS96-51 | 14CFS96-40 | 1.8 (0.82) | 6.9 (175) | ¼" |
| 14CFS95-38 | 14CFS95-51 | 14CFS95-40 | 1.8 (0.82) | 6.9 (175) | ¼" |
| 14CFS94-38 | 14CFS94-51 | 14CFS94-40 | 1.6 (0.73) | 5.7 (145) | ¼" |
| 14CFS93-38 | 14CFS93-51 | 14CFS93-40 | 1.5 (0.68) | 5.7 (145) | ¼" |
| 14CFS92-38 | 14CFS92-51 | 14CFS92-40 | 1.5 (0.68) | 5.7 (145) | ¼" |
| 14CFS91-38 | 14CFS91-51 | 14CFS91-40 | 1.5 (0.68) | 5.7 (145) | ¼" |
| 14CFS90-38 | 14CFS90-51 | 14CFS90-40 | 1.5 (0.68) | 5.7 (145) | ¼" |
All tools performance rated @ 90psi / 620 kPa air pressure.
Minimum Hose I.D.: 5/16" / 7.9mm
Drill Diameter Capacity Matches Chuck Size
